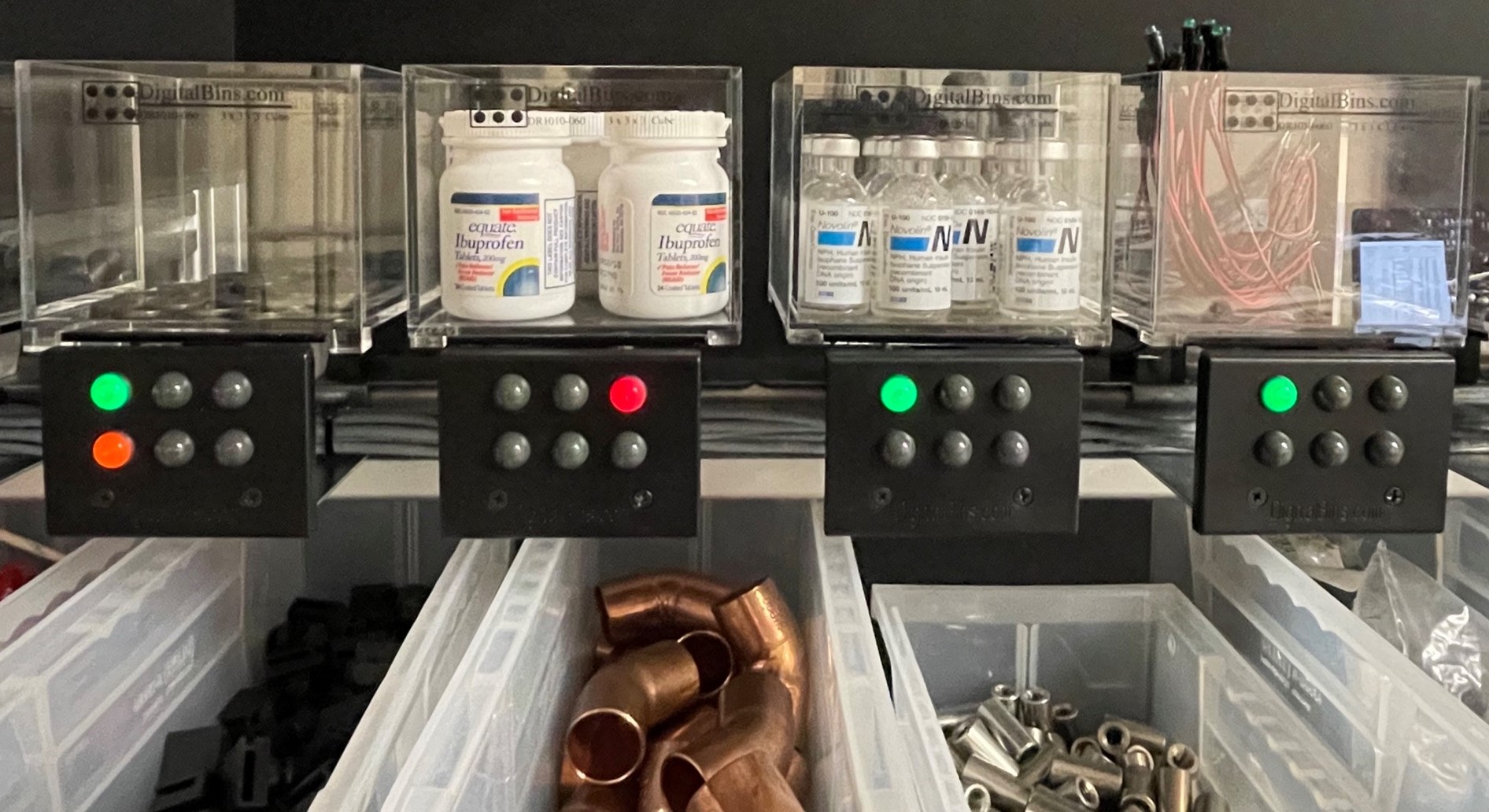

Scale Tops

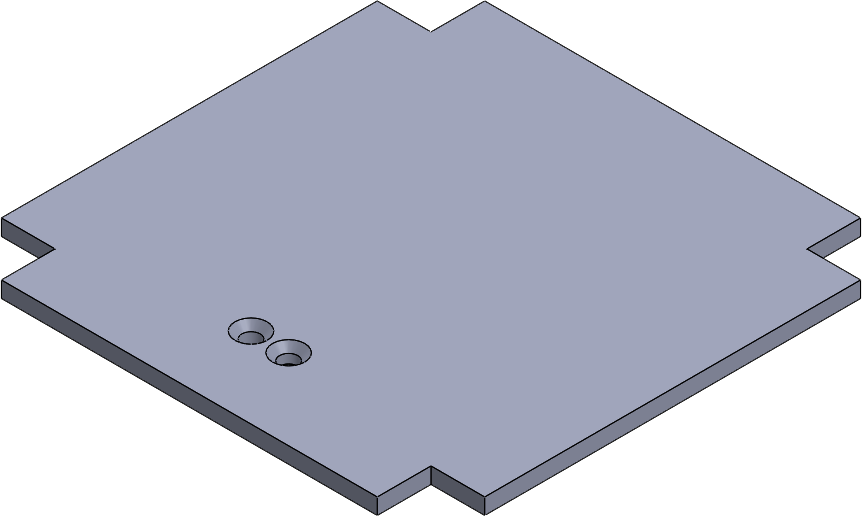

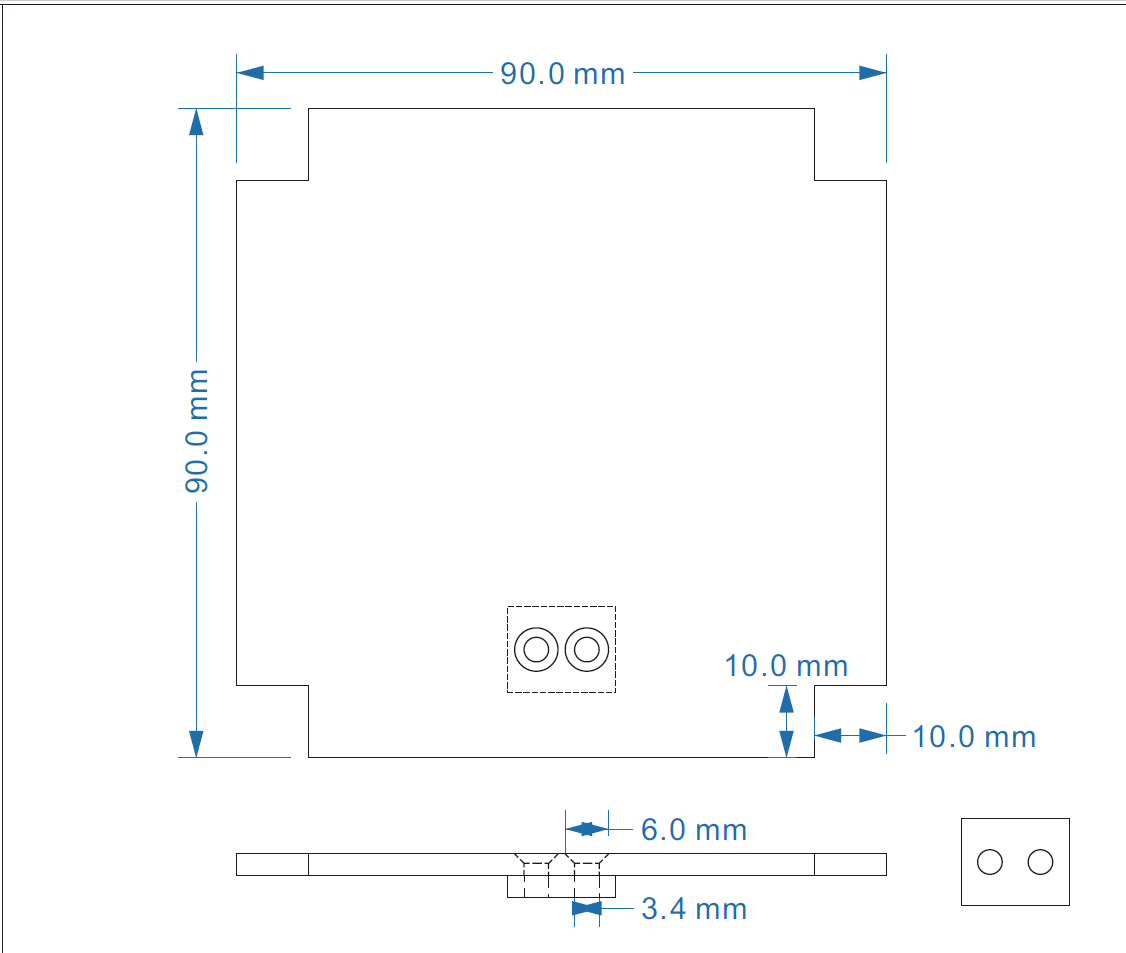

DR1010-050 3 x 3 x 3 Plexi Scale Top with locking notches


Part # Description
DR1010-050
3” x 3” x 3” Plexi Scale Top with locking notches


Acrylic cube scale base & spacer - 90x90mm
3mm black material
10x10mm corner notches
M3 flathead through holes (countersunk 90 degrees)
Spacer 15x12x3mm
Mates with DR1010-060 3” x 3” x 3” Plexi Cube

Weight = .10lbs.

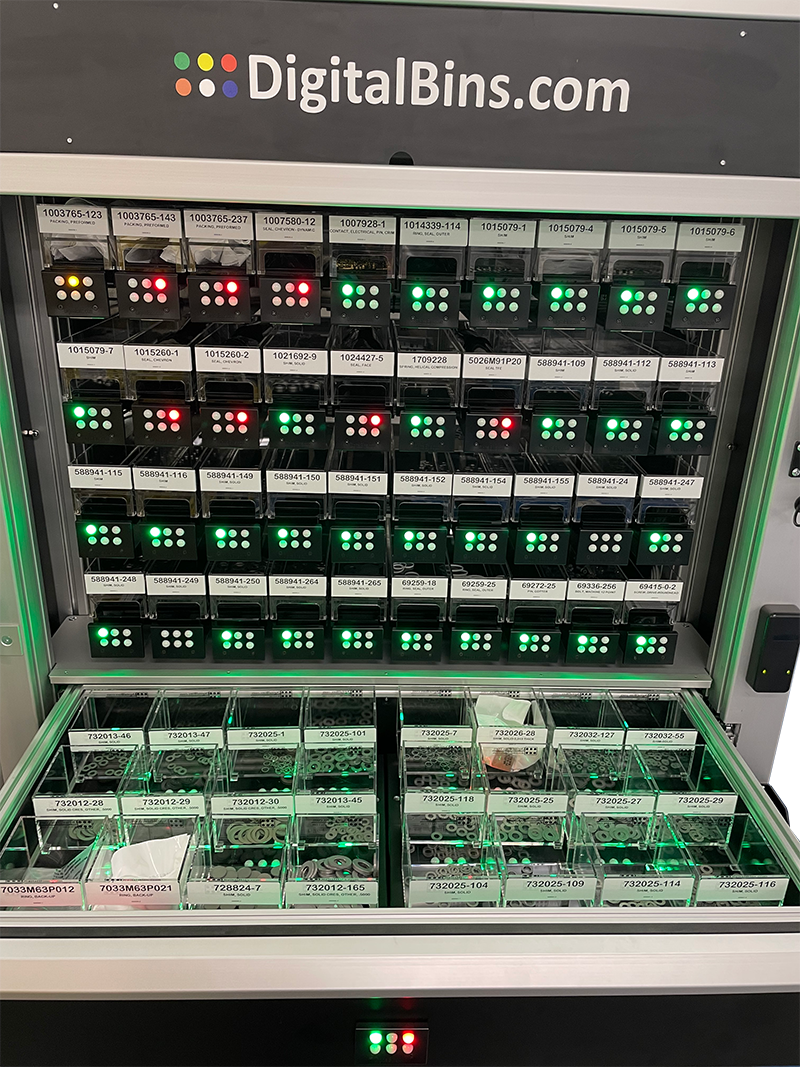

This scale top may be used in DigitalBins.com drawer units or mounted to extruded aluminum strut (an LED bracket is available).

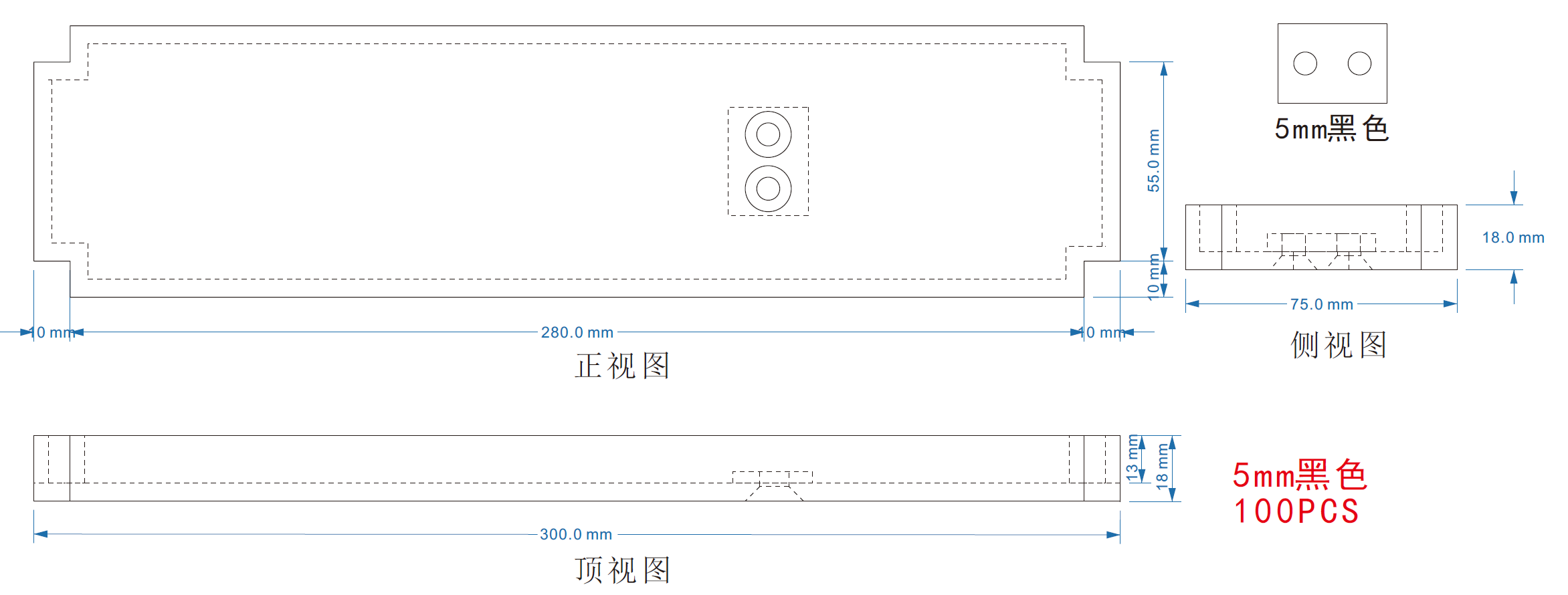

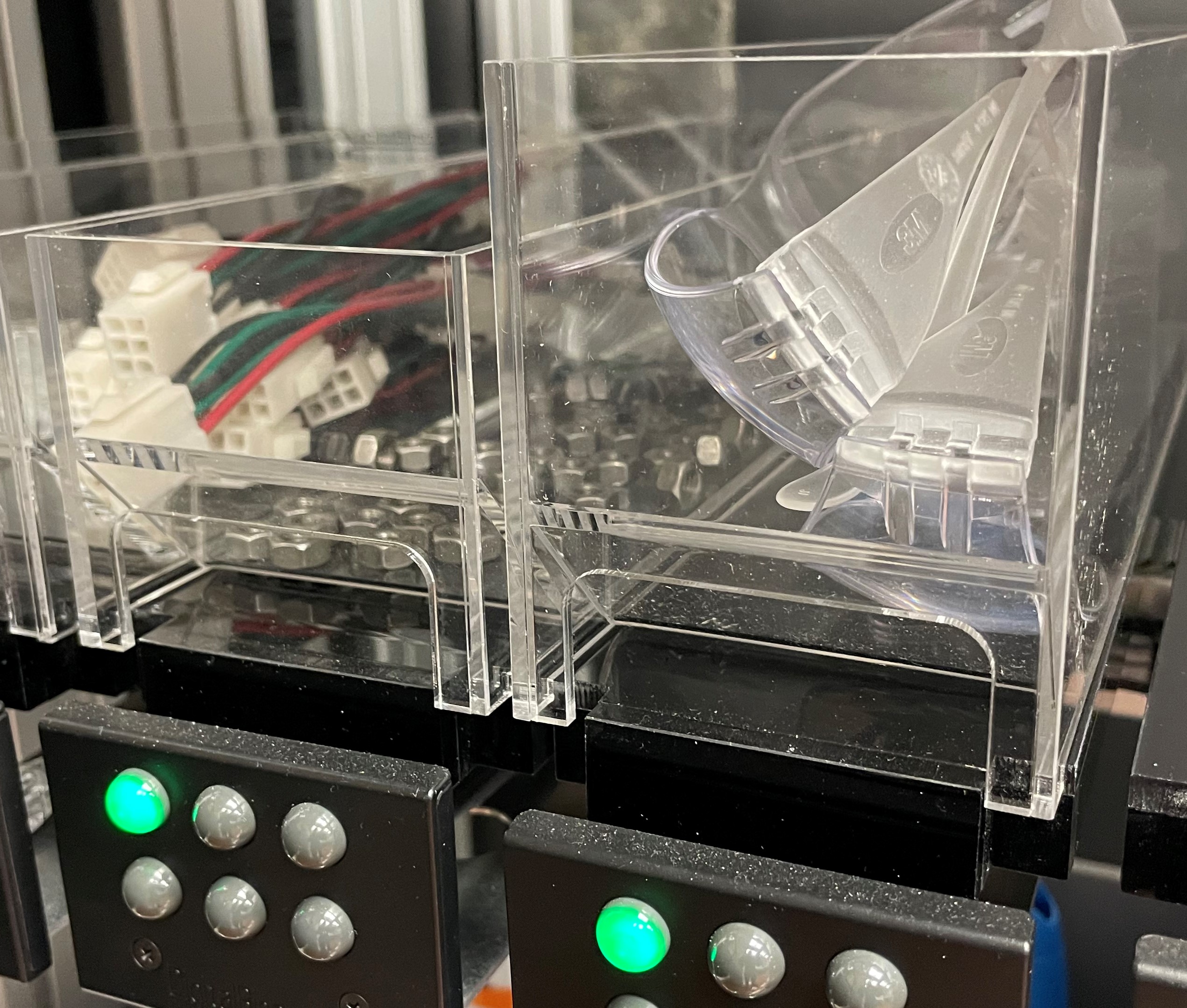

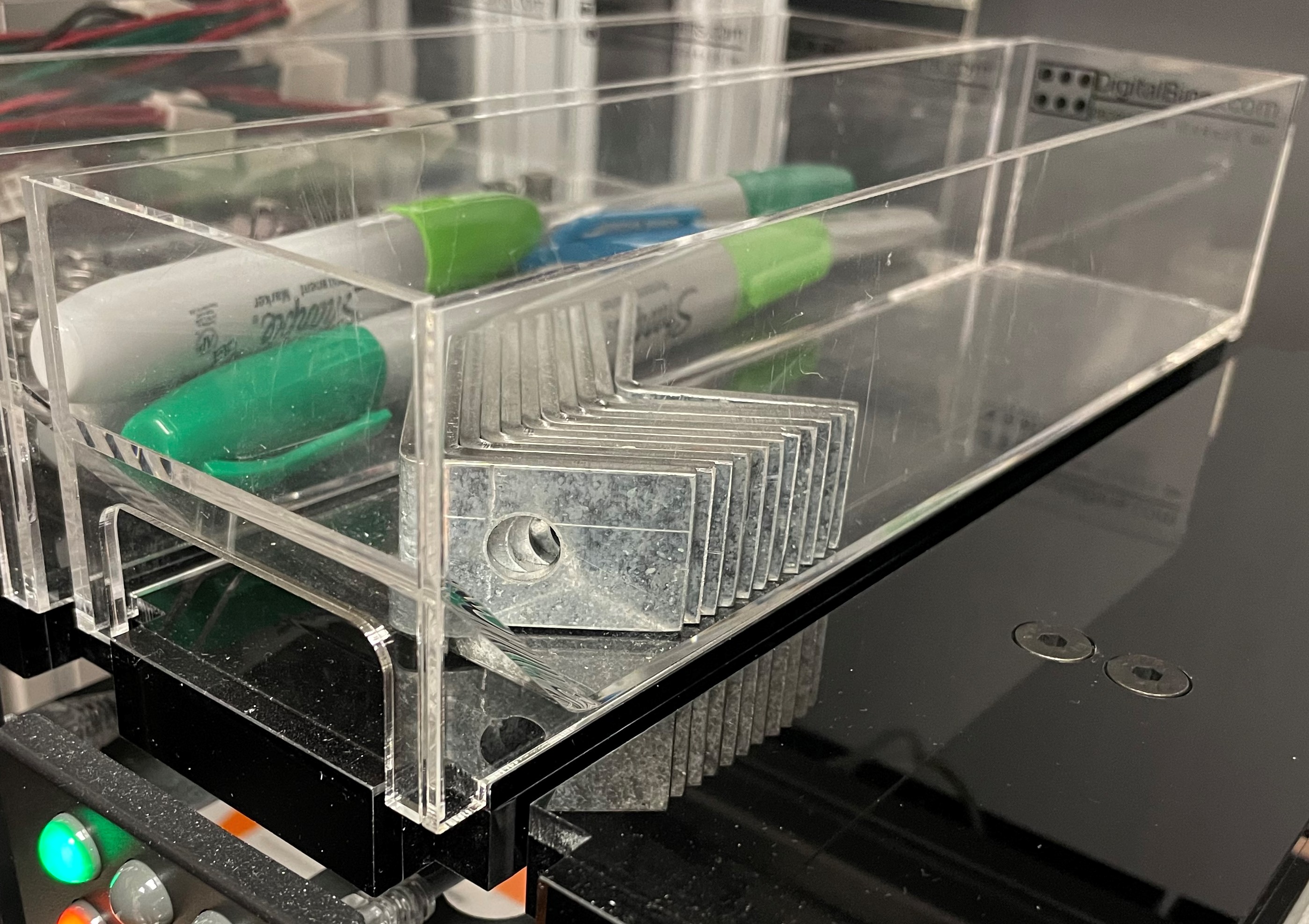

DB2001-003 3w x 12d Plexi Scale Top with locking notches


Part # Description
DB2001-003
3”w x 12”d Plexi Scale Top with locking notches


Acrylic bin scale base & spacer
5mm clear Plexi
10x10mm corner notches
M3 flathead through holes (countersunk 90 degrees)
Spacer
Mates with DB2001-004 (2.5”h) and DB2001-005(3.5”h) bins

Weight = .4lbs.

This scale top may be used on DigitalBins.com cabinet shelves, 60” shelves or extruded aluminum strut (an LED bracket is available).

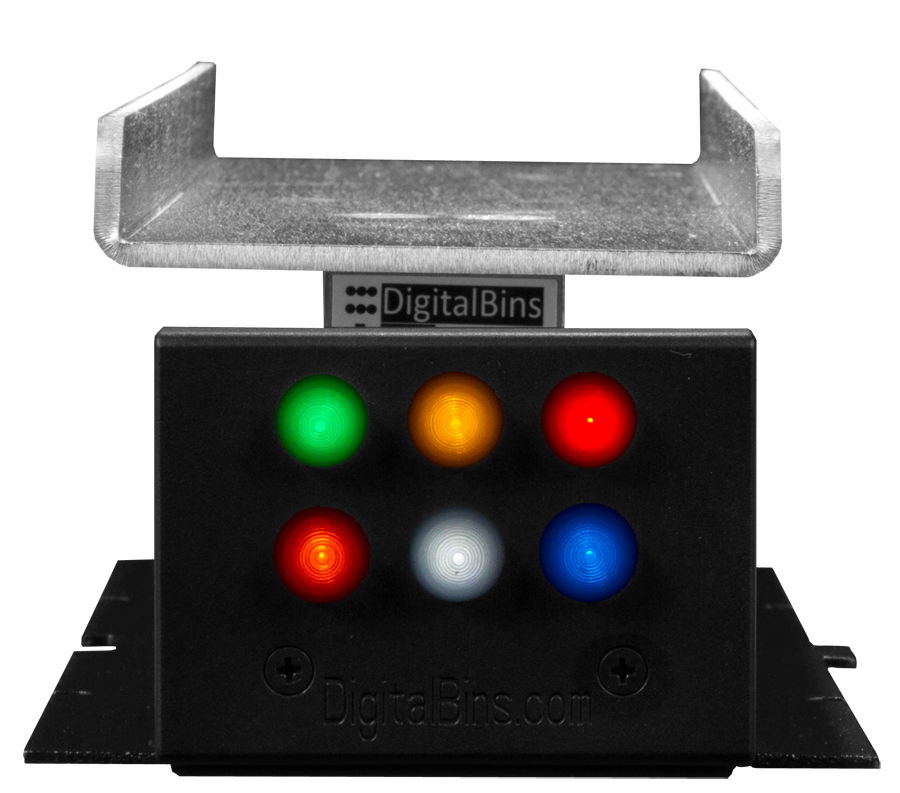

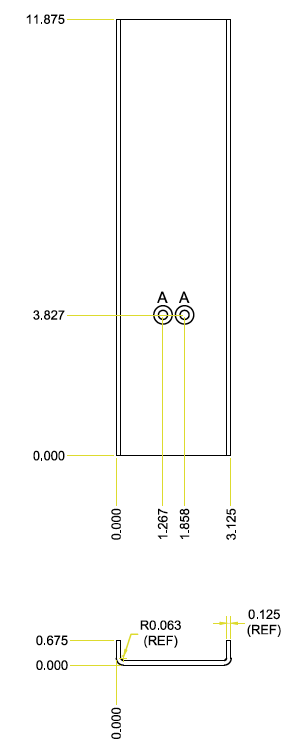

DB2001-002 - 3.125 x 11.875 Scale Top with bin guides


Part # Description
DB2001-002
3.125 x 11.875 Scale Top with bin guides


This scale top is made of lightweight 8 gauge 5052-H32 aluminum. When used with our 60” shelf, it uses one fastening location. It may also be used with our 2.5" Individual scale base. It has a 90 bend on each side creating ½” high bin guides. The maximum bin width is 2.85 inches. It weighs 0.55 lbs

This scale top can be fastened to 1 sensor mounted on a 60” shelf or it may be fastened to our 2.5" Individual Scale Base

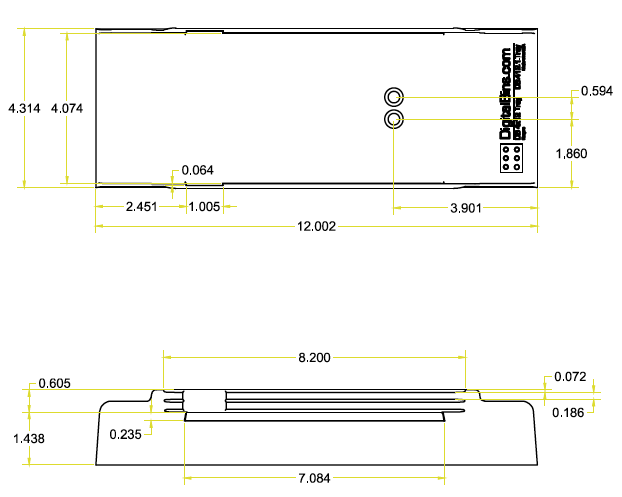

DB2102-001 - 4.314 x 11.875 ABS - Scale Top with bin guides


Part # Description
DB2102-001
4.314 x 11.875 ABS - Scale Top with bin guides

This scale top is molded using black ABS plastic. When used with our 60” shelf, it uses one fastening location. It may also be used with our 4" Individual scale base. It has a 90 bend on each side creating ½” high bin guides. The maximum bin width is 4.00 inches. It weighs 0.60 lbs

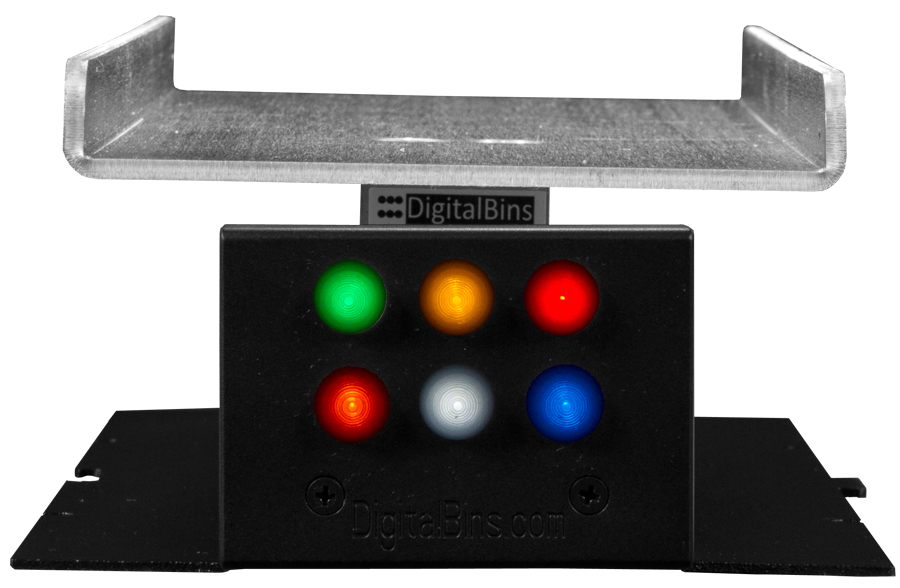

This scale top can be fastened to 1 sensor mounted on a 60” shelf or it may be fastened to our 4.0" Individual Scale Base

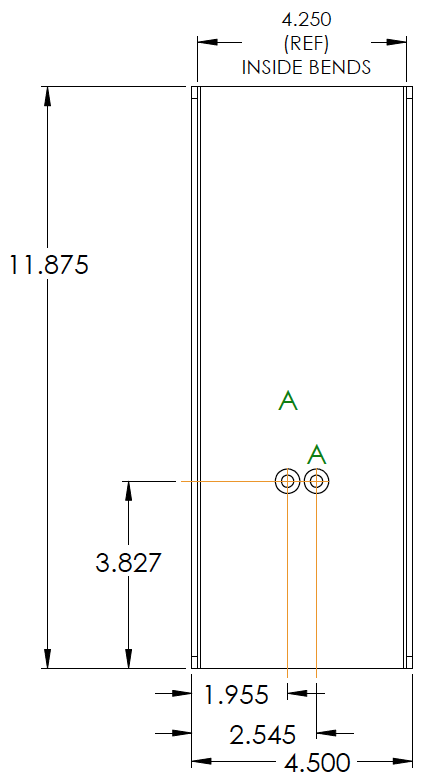

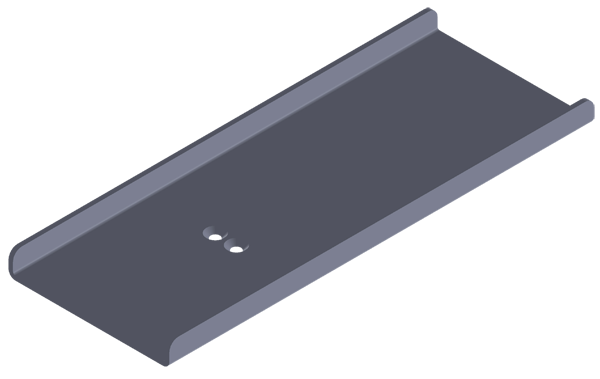

DB2106-002 - 4.5 x 11.875 Scale Top with bin guides


Part # Description
DB2106-002
4.5 x 11.875 Scale Top with bin guides

This scale top is made of lightweight 8 gauge 5052-H32 aluminum. When used with our 60” shelf, it uses one fastening location. It may also be used with our 2.5" Individual scale base. It has a 90 bend on each side creating ½” high bin guides. The maximum bin width is 4.25 inches. It weighs 0.75 lbs

This scale top can be fastened to 1 sensor mounted on a 60” shelf or it may be fastened to our 4.0" Individual Scale Base

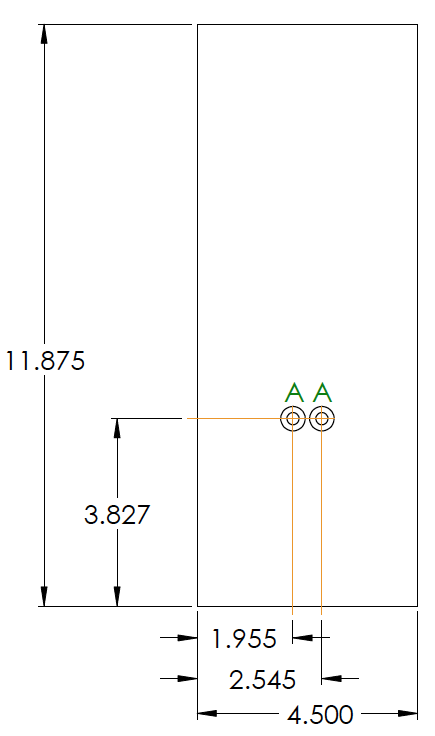

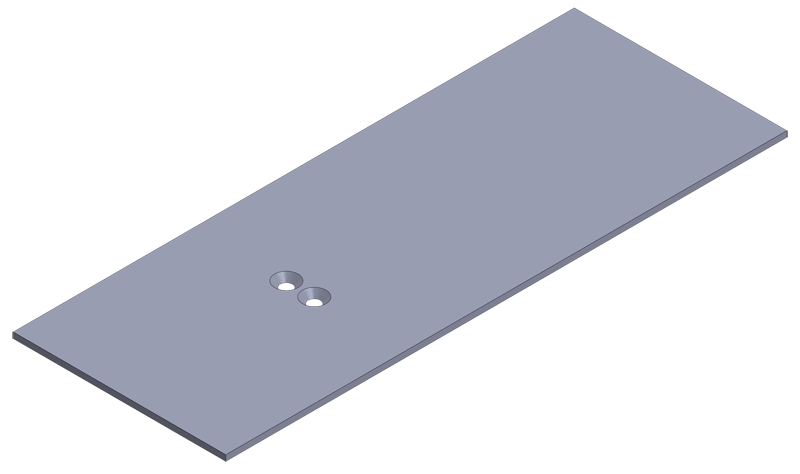

DB2106-003 - 4.5 x 11.875 Flat Scale Top


Part # Description
DB2106-003
4.5 x 11.875 Flat Scale Top

This scale top is made of lightweight 8 gauge 5052-H32 aluminum. When used with our 60” shelf, it uses one fastening location. It may also be used with our 2.5” and 4" Individual scale base. It does not have bin guides allowing dynamic shelf configurations. You may create a scale using one top (4.5"w) or you may place scale tops side by side to create one scale using two tops, three tops or four tops (18”w). The maximum bin width is the width of the scale created. It weighs .65 lbs.

This scale top can be fastened to 1 sensor mounted on a 60” shelf or it may be fastened to our 4.0" Individual Scale Base

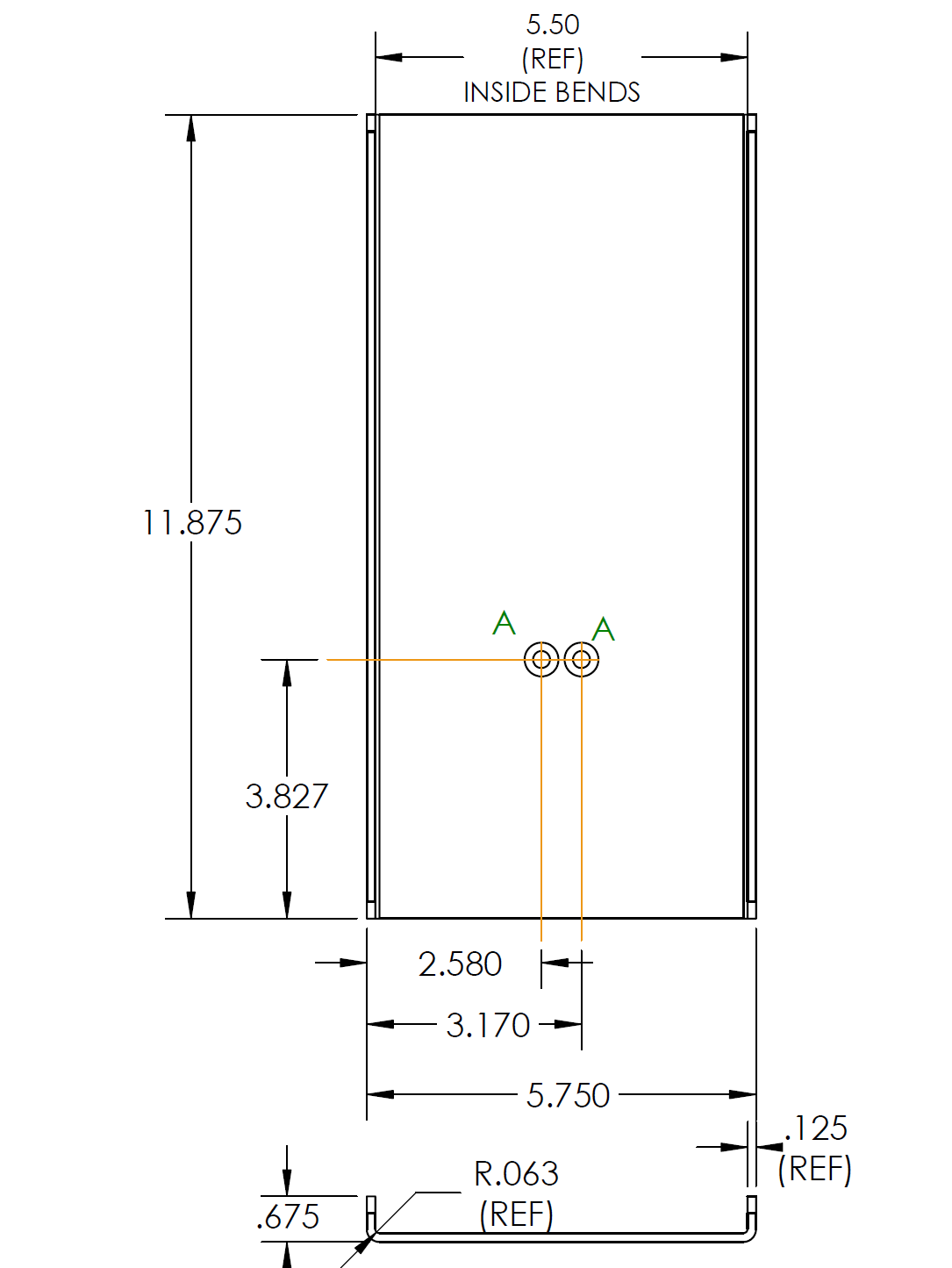

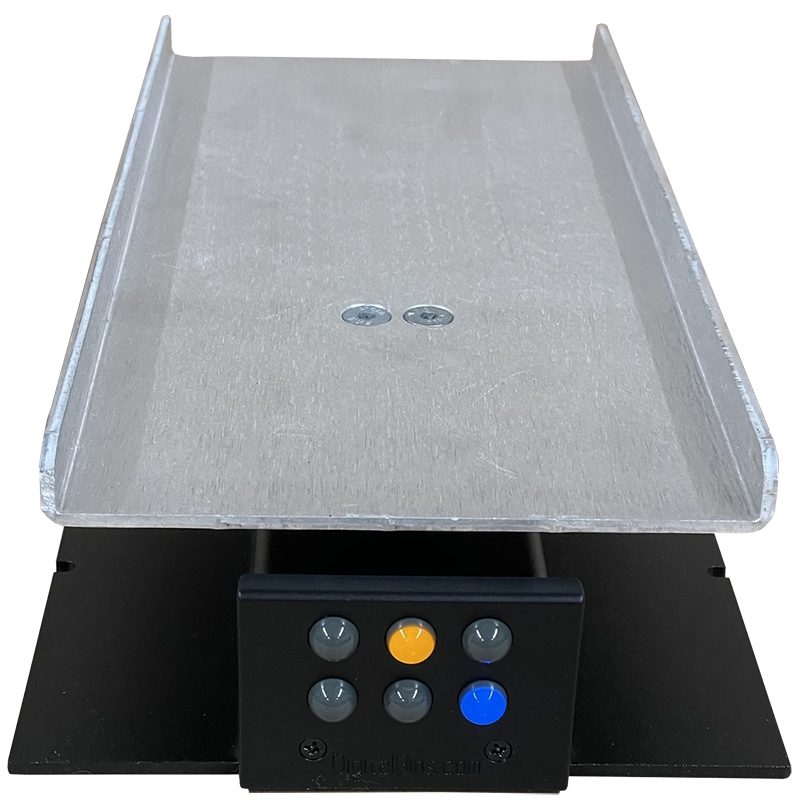

DB2201-009 - 5.750 x 12 Scale Top with bin guides


Part # Description
DB2201-009
5.750 x 12 Scale Top

This scale top is made of lightweight 8 gauge 5052-H32 aluminum. When used with our 60” shelf, it uses one fastening location. It may also be used with our 5.75" Individual Scale base or Strut based systems. It has a 90-degree bend on each side creating ½” high bin guides. The maximum bin width is 5.75 inches. It weighs 1.0 lbs.

When used with our 60 shelf, it uses one fastening location. It may also be used with our 5.75" Individual Scale base or Strut based systems.

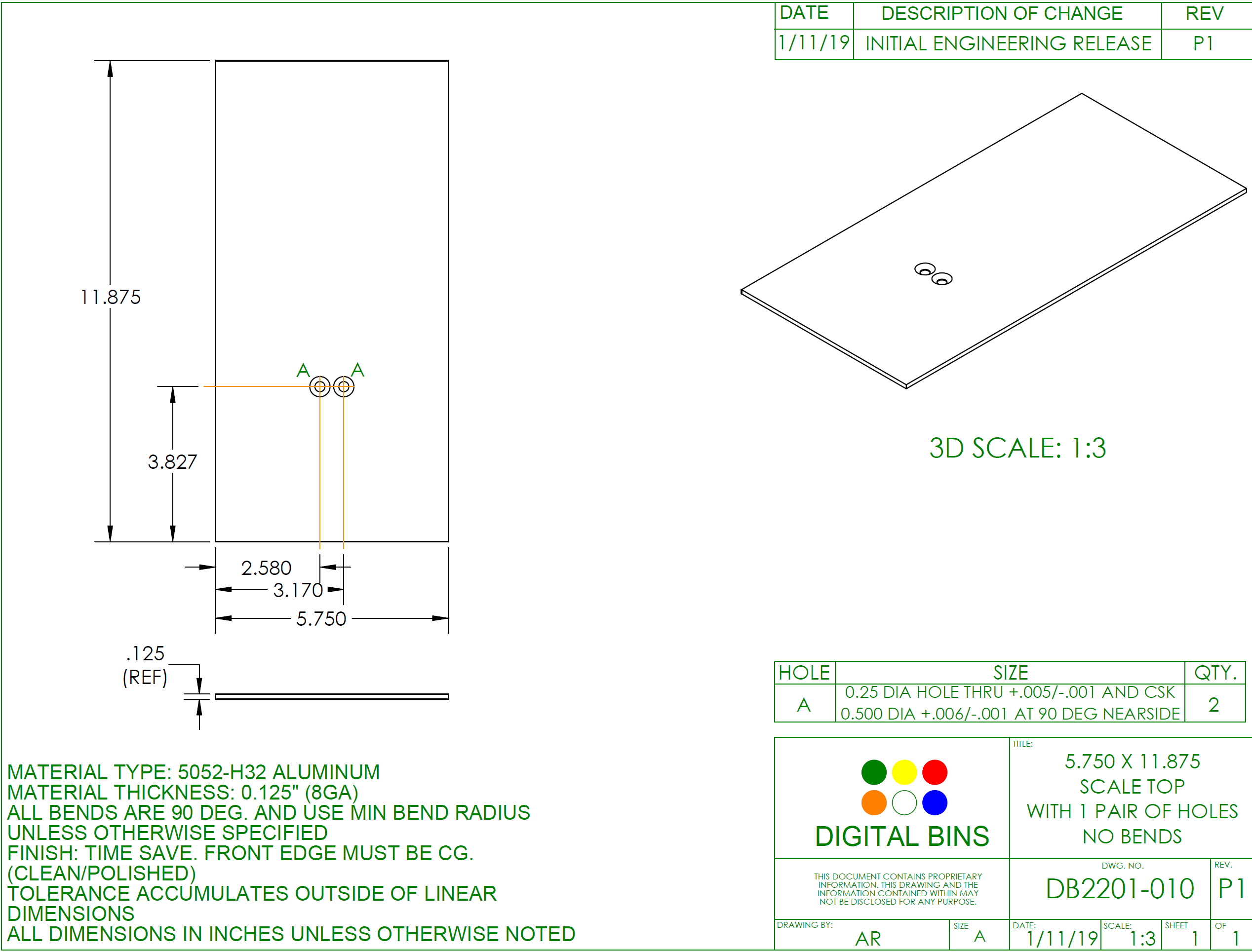

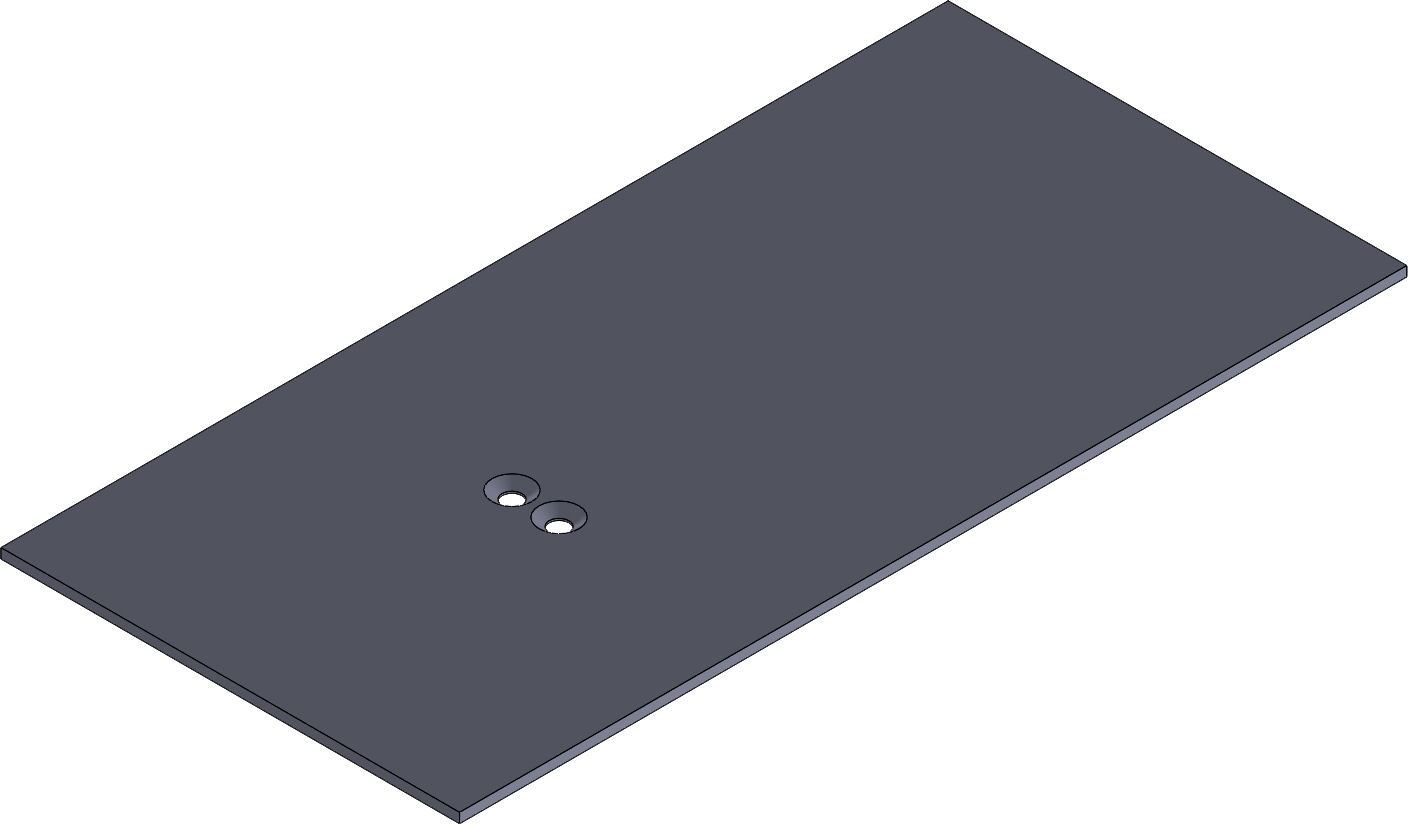

DB2201-010 - 5.750x 12 Scale Top with 1 pair of holes - no bends


Part # Description
DB2201-010
5.570 x 12 Scale Top

This scale top is made of lightweight 8 gauge 5052-H32 aluminum. When used with our 60” shelf, it uses one fastening location. It may also be used with our 5.75" Individual Scale base or Strut based systems. It has no bin guides and was designed for bridging bin locations. The maximum bin width is 5.75 inches. It weighs .9 lbs.

When used with our 60 shelf, it uses one fastening location. It may also be used with our 5.75" Individual Scale base or Strut based systems.

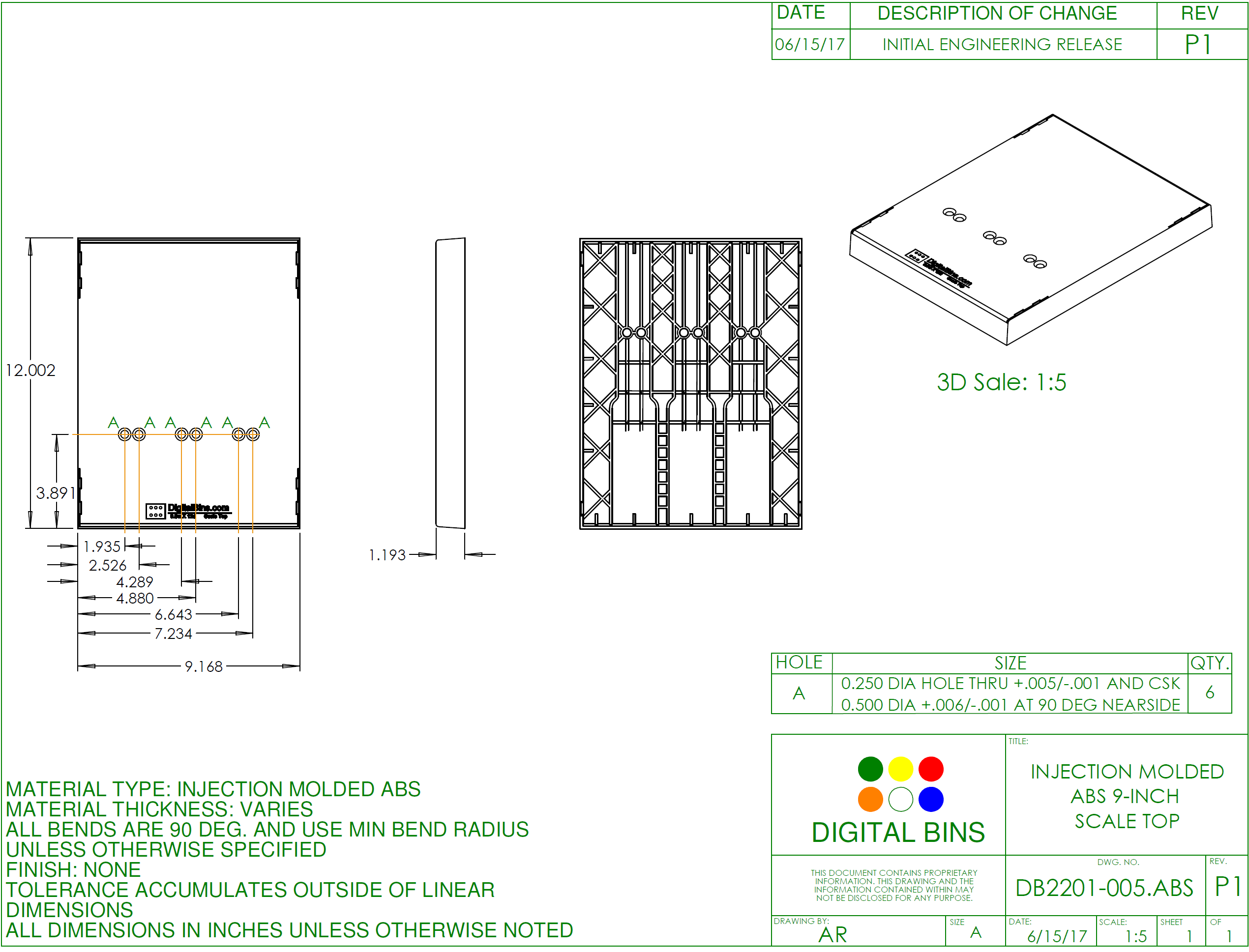

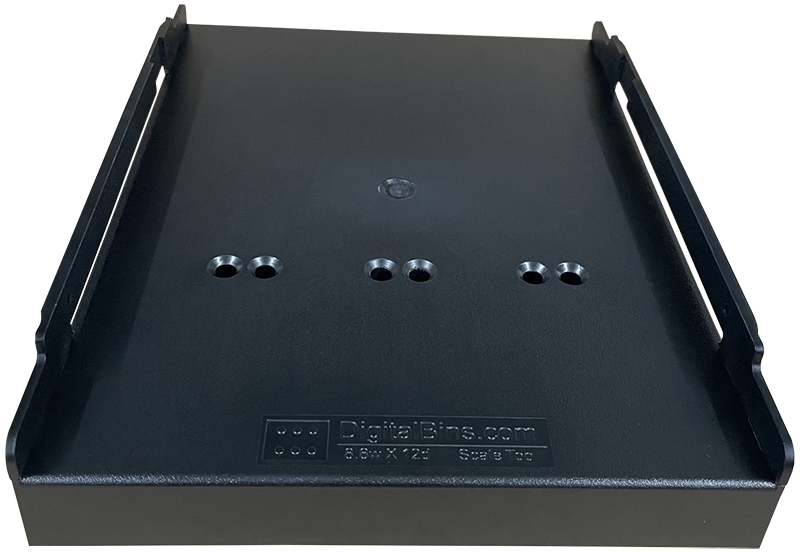

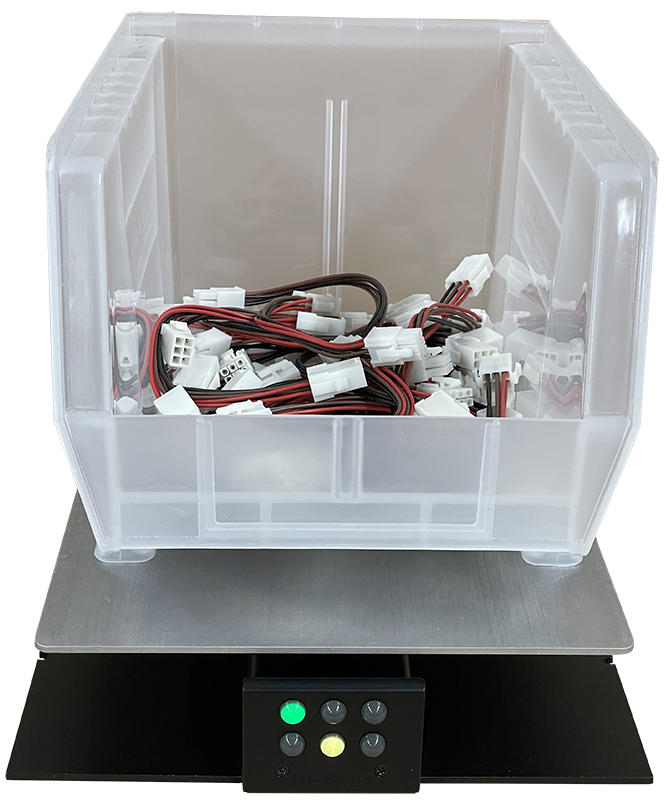

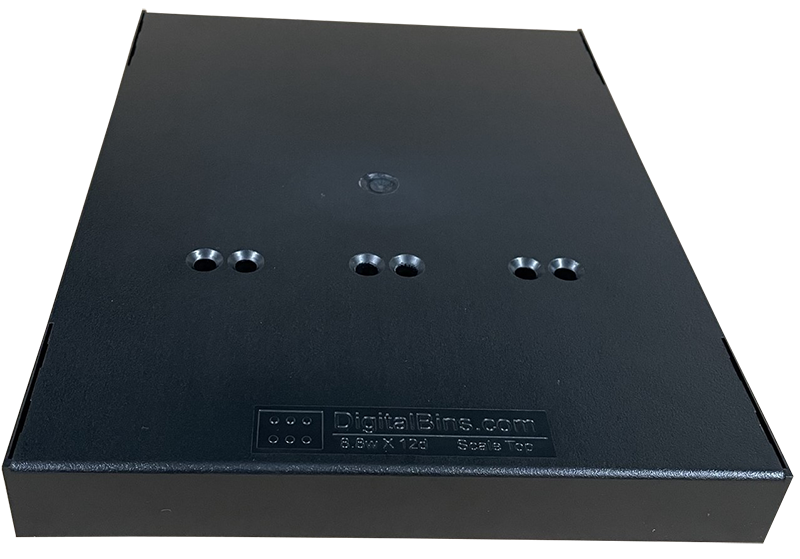

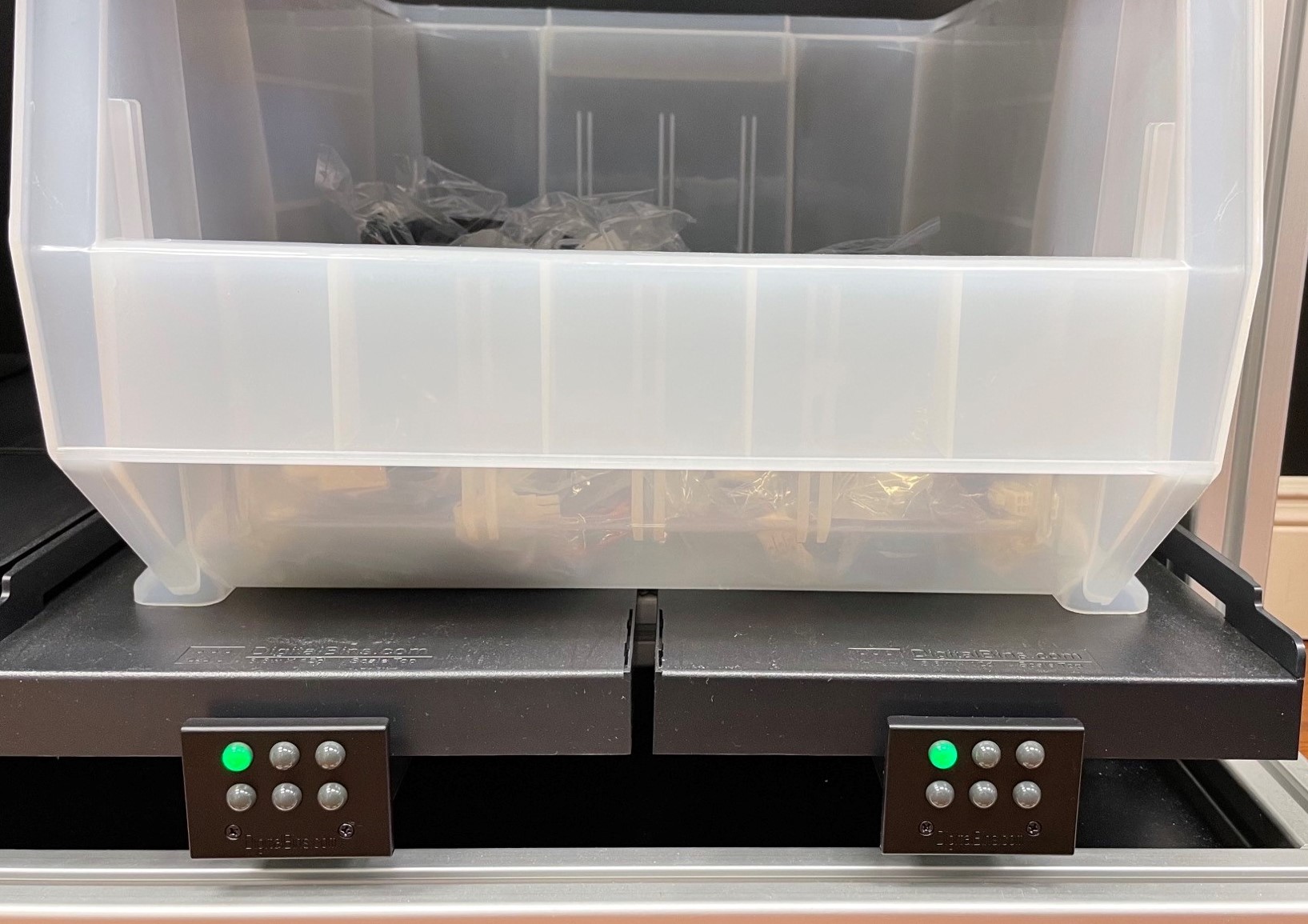

DB2201-005.ABS - 9.062 x 12 Scale Top with snap-in bin guides


Part # Description
DB2201-005.ABS
9.062 x 12 Scale Top with snap-in bin guides

This scale top is molded using black ABS plastic material. When used with our 60 shelf, it uses two fastening locations. It may also be used with our 9" Individual Scale base or Strut based systems. It has snap-in bin guides allowing flexibility when bridging bin locations. The maximum bin width is 9 inches. It weighs = 1.2 lbs.

When used with our 60 shelf, it uses two fastening locations. It may also be used with our 9" Individual Scale base or Strut based systems.

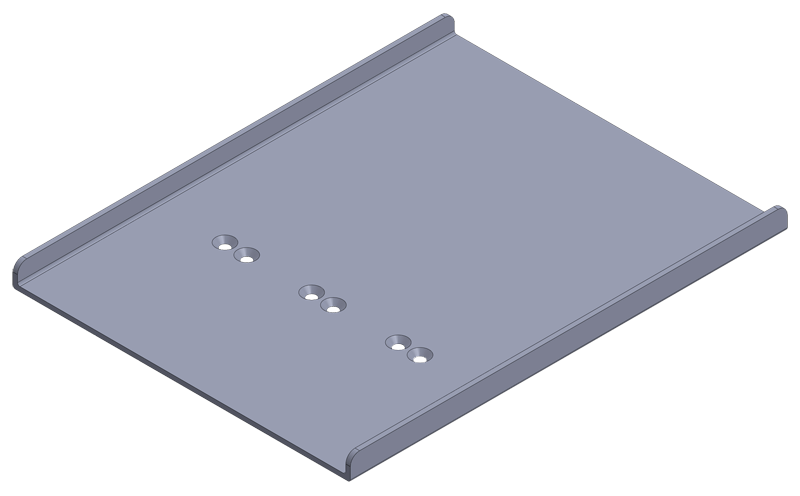

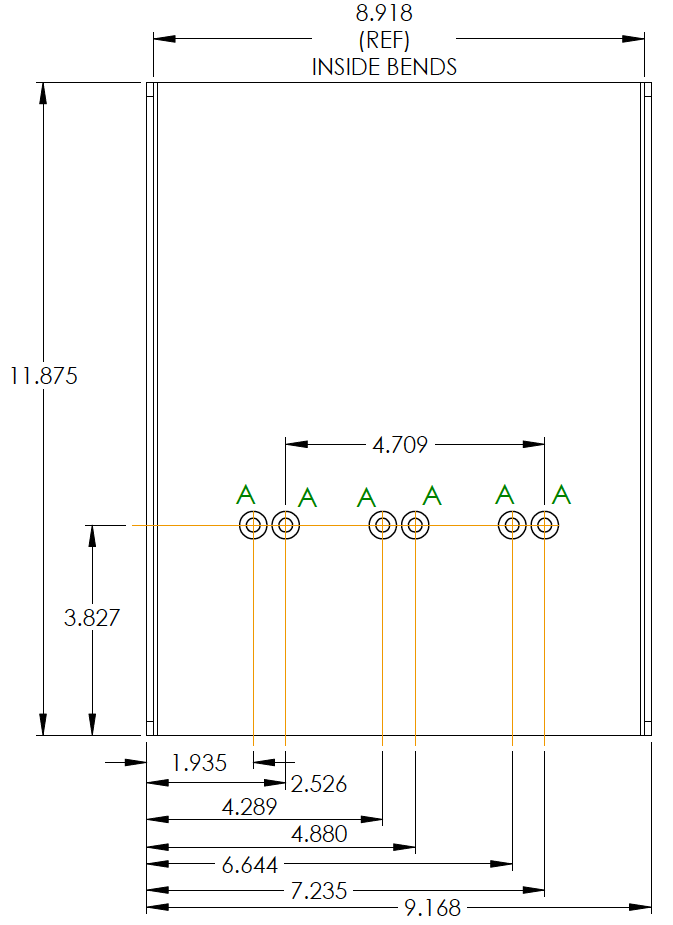

DB2201-005 - 9.168 x 11.875 Scale Top with bin guides


Part # Description
DB2201-005
9.168 x 11.875 Scale Top with bin guides

This scale top is made of lightweight 8 gauge 5052-H32 aluminum. It features two sensor fastening positions. When used with our 60” shelf, it allows 1 or 2 sensor configurations. It has a 90 bend on each side creating ½” high bin guides. The maximum bin width is 8.9 inches. It weighs 1.40 lbs

This scale top can be fastened to 1 or 2 sensors mounted on a 60” shelf or it may be fastened to our 4" or 12” Individual Scale Base

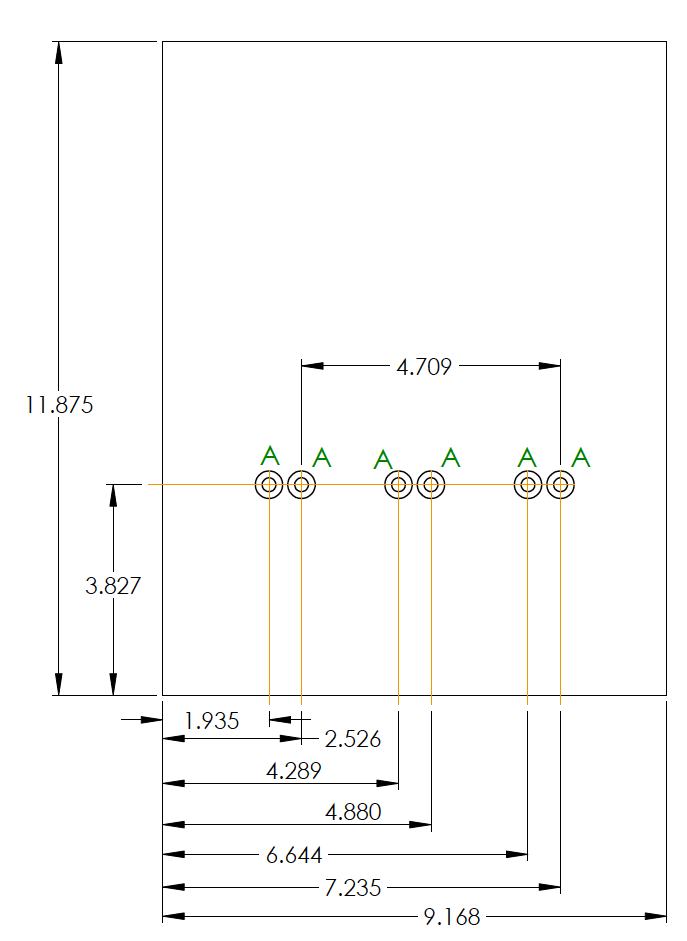

DB2201-006 - 9.168 x 11.875 Flat Scale Top

Part # Description
DB2201-006
9.168 x 11.875 Flat Scale Top

This scale top is made of lightweight 8 gauge 5052-H32 aluminum. It features two sensor fastening positions. When used with our 60” shelf, it allows 1 or 2 sensor configurations. It does not have bin guides allowing dynamic shelf configurations. You may create a scale using one top (9.1"w) or you may place scale tops side by side to create a scale using two tops (18.2"w), three tops (27.3"w) or four tops (36.4"w). The maximum bin width is the width of the scale created. It weighs 1.25 lbs

This scale top can be fastened to 1 or 2 sensors mounted on a 60” shelf or it may be fastened to our 4" or 12” Individual Scale Base

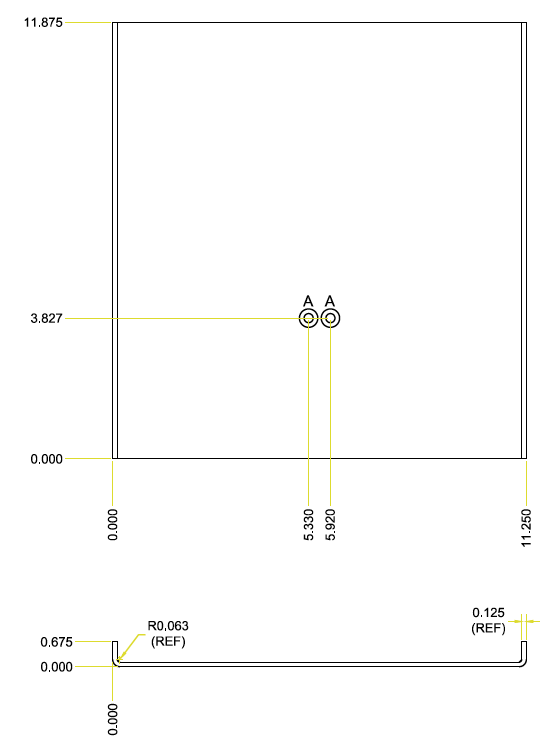

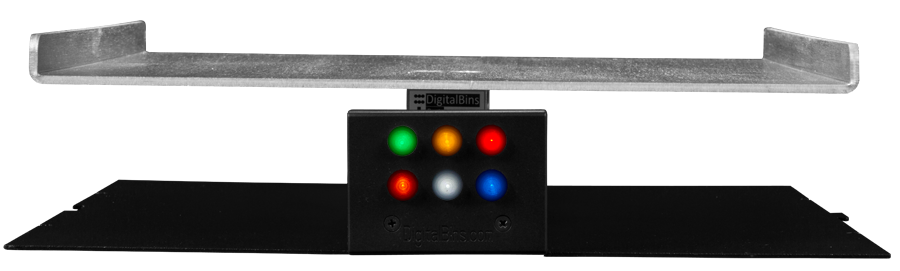

DB2201-002 - 11.250 x 11.875 Scale Top with bin guides


Part # Description
DB2201-002
11.250 x 11.875 Scale Top with bin guides

This scale top is made of lightweight 8 gauge 5052-H32 aluminum. When used with our 60” shelf, it uses one fastening location. It may also be used with our 12” Individual scale base. It has a 90 bend on each side creating ½” high bin guides. The maximum bin width is 11.0 inches. It weighs 1.70 lbs

This scale top can be fastened to 1 sensor mounted on a 60” shelf or it may be fastened to our 12” Individual Scale Base

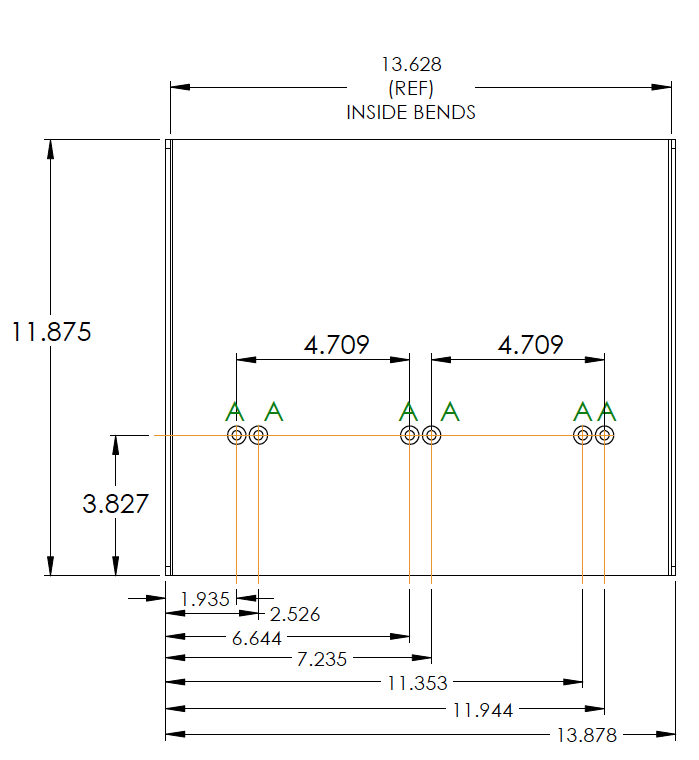

DB2201-003 - 13.878 x 11.875 Scale Top with bin guides


Part # Description
DB2201-003
13.878 x 11.875 Scale Top with bin guides

This scale top is made of lightweight 8 gauge 5052-H32 aluminum. It features three sensor fastening positions. When used with our 60” shelf, it allows 1, 2 or 3 sensor configurations. It has a 90 bend on each side creating ½” high bin guides. The maximum bin width is 13.6 inches. It weighs 2.05 lbs

This scale top can be fastened to 1, 2 or 3 sensors mounted on a 60” shelf.

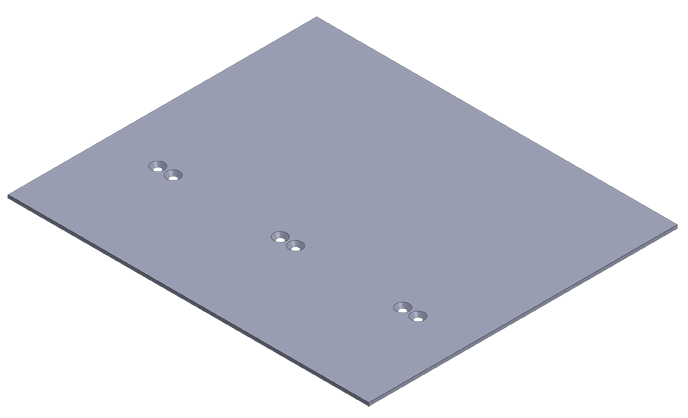

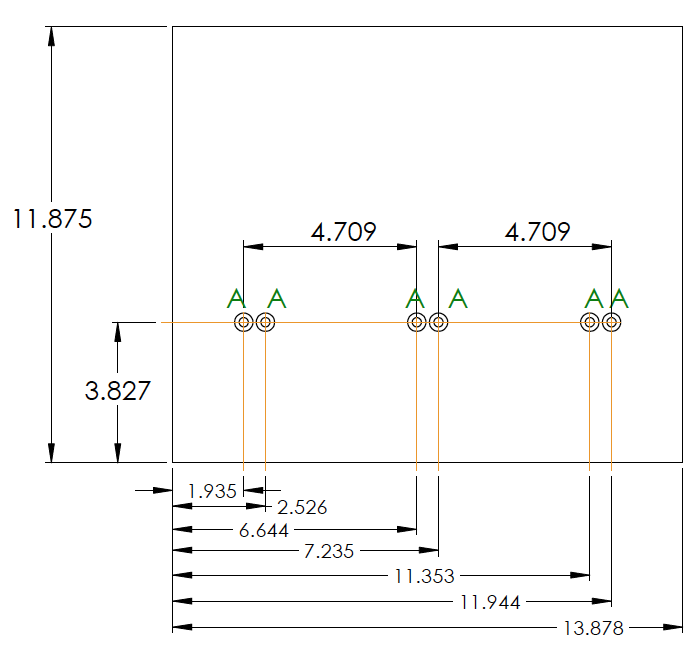

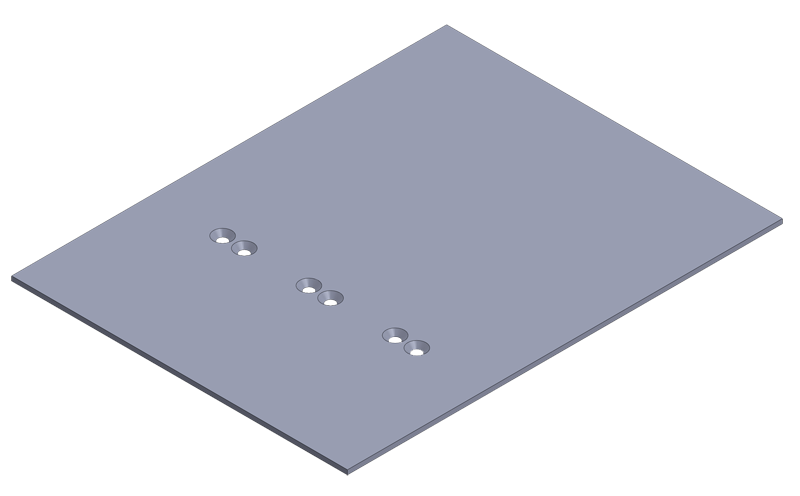

DB2201-004 - 13.878 x 11.875 Flat Scale Top


Part # Description
DB2201-004
13.878 x 11.875 Flat Scale Top

This scale top is made of lightweight 8 gauge 5052-H32 aluminum. It features three sensor fastening positions. When used with our 60” shelf, it allows 1, 2 or 3 sensor configurations. It does not have bin guides allowing dynamic shelf configurations. You may create a scale using one top (13.8"w) or you may place scale tops side by side to create a scale using two tops (28"w), three tops (42"w) or four tops (56"w). The maximum bin width is the width of the scale created. Each top weighs 1.90 lbs

This scale top can be fastened to 1, 2 or 3 sensors mounted on a 60” shelf.

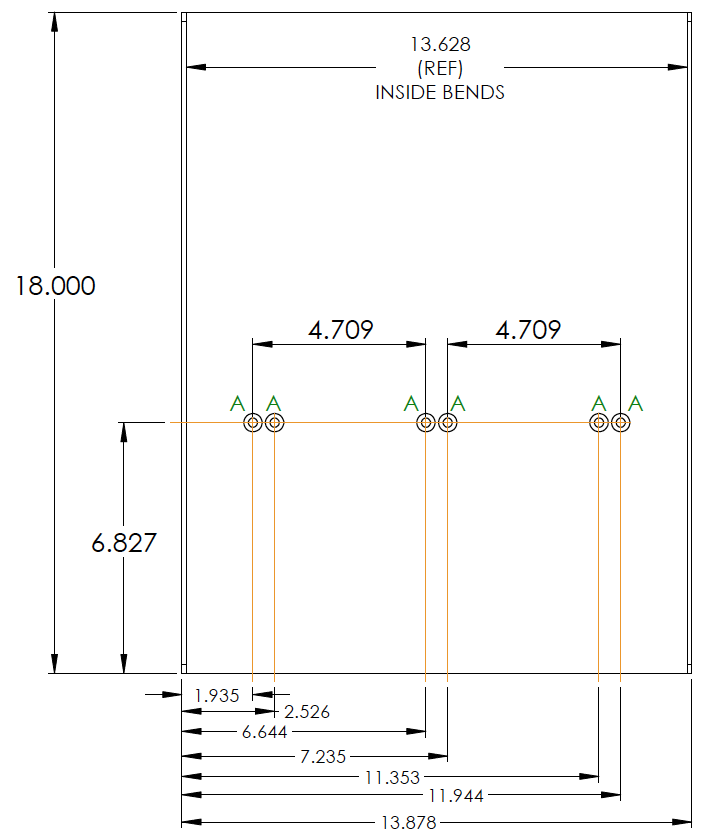

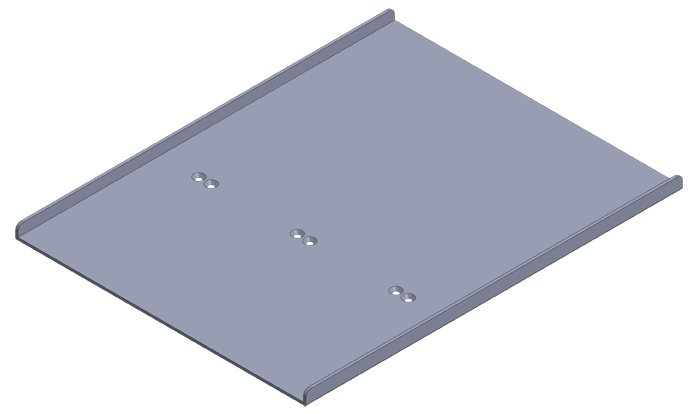

DB2201-007 - 13.878 x 18 Scale Top with bin guides


Part # Description
DB2201-007
13.878 x 18 Scale Top with bin guides

This scale top is made of lightweight 8 gauge 5052-H32 aluminum. It features three sensor fastening positions. When used with our 60” shelf, it allows 1, 2 or 3 sensor configurations. It has a 90 bend on each side creating ½” high bin guides. The maximum bin width is 13.6 inches. It weighs 3.10 lbs

This scale top can be fastened to 1, 2 or 3 sensors mounted on a 60” shelf.

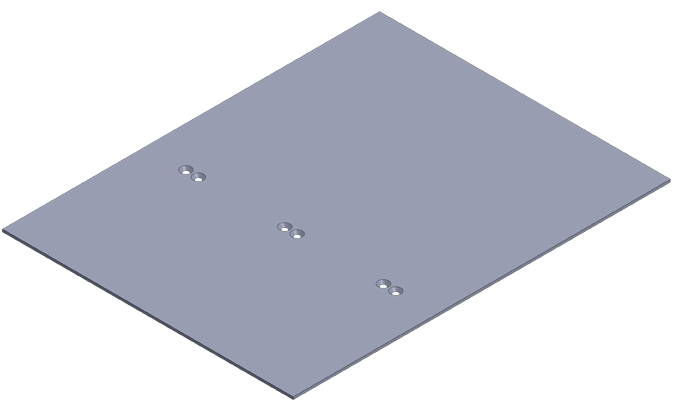

DB2201-008 - 13.878 x 18 Flat Scale Top


Part # Description
DB2201-008
13.878 x 18 Flat Scale Top

This scale top is made of lightweight 8 gauge 5052-H32 aluminum. It features three sensor fastening positions. When used with our 60” shelf, it allows 1, 2 or 3 sensor configurations. It does not have bin guides allowing dynamic shelf configurations. You may create a scale using one top (13.8"w) or you may place scale tops side by side to create a scale using two tops (28"w), three tops (42"w) or four tops (56"w). The maximum bin width is the width of the scale created. Each top weighs 2.90 lbs

This scale top can be fastened to 1, 2 or 3 sensors mounted on a 60” shelf.

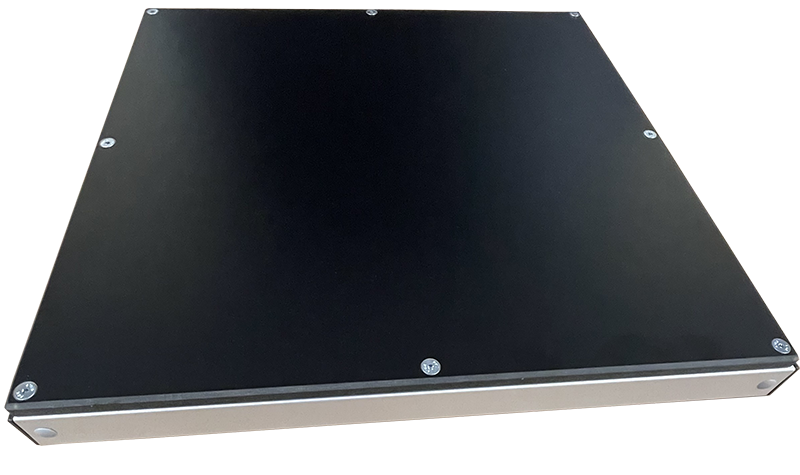

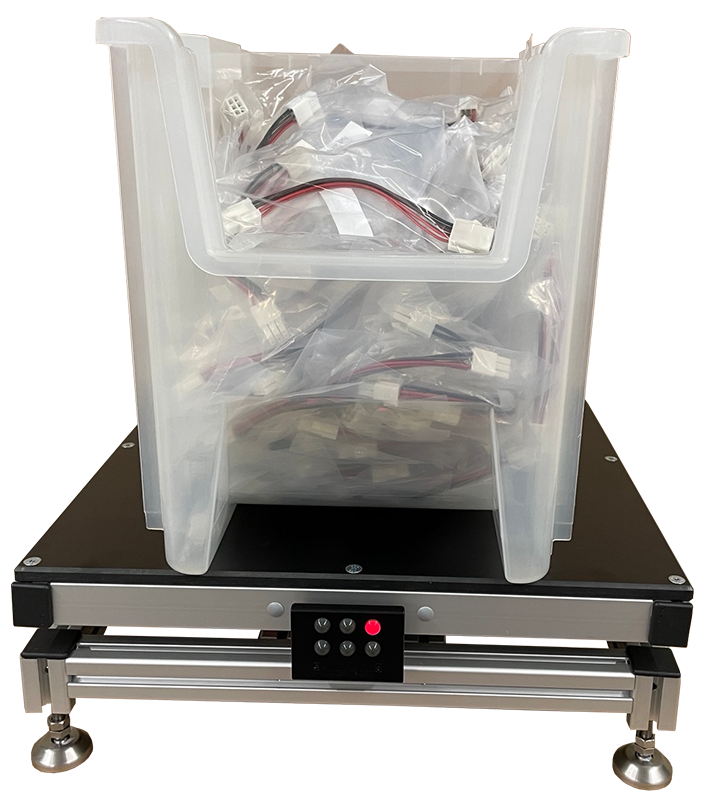

DB2302-001 - 16.5 x 16.5 Light Frame Scale Top


Part # Description
DB2302-001
16.5 x 16.5 Light Frame Bench Scale Top

This scale top frame is made of light-weight extruded aluminum. The top of This platform scale top is made of heavy-duty 10mm black plastic. The DB2302-001 frame will support small-block sensors ranging in capacity from 12kg to 50 kg. It weighs = 10 lbs.

The DB2302-001 frame will support small-block sensors ranging in capacity from 12kg to 50 kg.

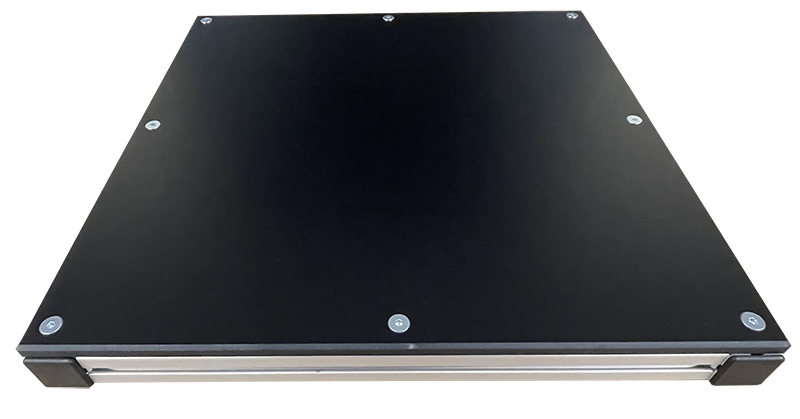

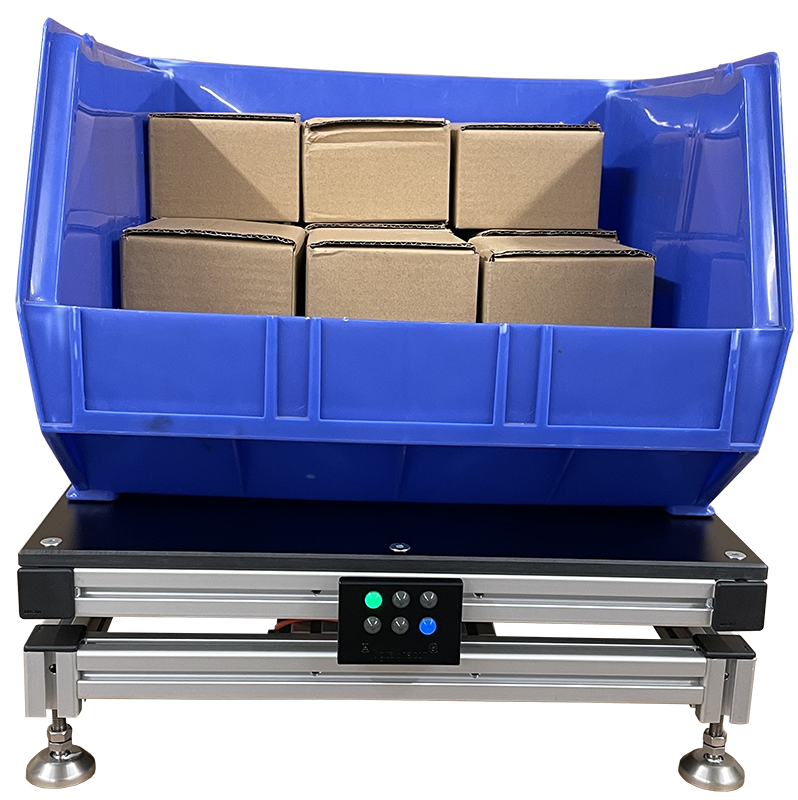

DB2302-002 - 16.5 x 16.5 Heavy-Duty Frame Scale Top


Part # Description
DB2302-002
16.5 x 16.5 Heavy-Duty Frame Scale Top

This scale top frame is made of heavy-weight extruded aluminum. The top of This platform scale top is made of heavy-duty 10mm black plastic. The DB2302-002 frame will support large-block sensors ranging in capacity from 60kg to 500 kg. It weighs = 14 lbs.

The DB2302-002 frame will support large-block sensors ranging in capacity from 60kg to 500 kg.


DB2302-003 - 18 x 18 Heavy-Duty Frame Scale Top


Part # Description
DB2302-003
18 x 18 Heavy-Duty Frame Scale Top

This scale top frame is made of heavy-weight extruded aluminum. The top of This platform scale top is made of heavy-duty 10mm black plastic. The DB2302-003 frame will support large-block sensors ranging in capacity from 60kg to 500 kg. It weighs = 15 lbs.

The DB2302-003 frame will support large-block sensors ranging in capacity from 60kg to 500 kg.
